Passive Car Navigation Roof Mount Car GPS Antenna With Rf Coaxial Connector Cable

Name: Passive Car Navigation Roof Mount Car GPS Antenna With Rf Coaxial Connector Cable
Brand: BOGES
Price: 1 USD

Brand Name : BOGES

Model Number : BGS-MM1575-3650SM

Certification : ISO9001,RoHs

Place of Origin : Dongguan, Guangdong, China

MOQ : Negotiable

Payment Terms : T/T

Supply Ability : 20K per day

Delivery Time : 10 days

Packaging Details : PE Bag/Carton

Frequency : 1575.42 MHz

Impedance : 50 OHM

S.W.R : 1.5 Max.

Peak Gain : 4 dB

Connector : SMA Male; RP-SMA Male

Cable : RG 174 Cable Black

Price : Negotiable

Contact Now

Passive Car Navigation Roof Mount Gps Antenna With Rf Coaxial Connector Cable

Feature

▪ RoHS Compliant

▪ Low V.S.W.R. / Low Loss Design / High Gain

▪ High Efficiency and Sensitivity

▪ Low Loss RF Coaxial Connector Cable Feed

▪ Water Proof Design

Application

▪ Global Positioning System

▪ GARMIN / Marine Positioning System

▪ GPS / GSM Car Tracking System

Detail Product Description

Type 25x25 Ceramic Antenna

▪ Frequency : 1575.42 ±5 MHz

▪ Polarization : Right Hand Circular Polarization

▪ S.W.R. : <= 1.5 ▪ Gain : 4dBic @ 0 deg.

Amplifier / Filter

▪ Gain : 18 dB (typical) ▪ Noise Figure : 1.5 dB

▪ Out Band Rejection : 7dB @ ± 20MHz;

20dB @ ± 50MHz;

30dB @ ±100MHz;

▪ DC Voltage : 3 ~ 5 V ▪ DC Current : 5 ~ 10m A

Mechanical / Environment

▪ Weight : < 110 g ▪ Color : Black

▪ Connector : SMA/FME/MMCX/BNC/FAKRA

TNC/MCX/SSMB/SMB/SMC

▪ Cable : RG-174 // 5000 mm

S.W.R

Passive Car Navigation Roof Mount Car GPS Antenna With Rf Coaxial Connector Cable

Radiation Pattern

Passive Car Navigation Roof Mount Car GPS Antenna With Rf Coaxial Connector Cable

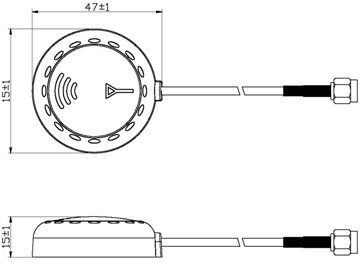

Drawing

Passive Car Navigation Roof Mount Car GPS Antenna With Rf Coaxial Connector Cable
