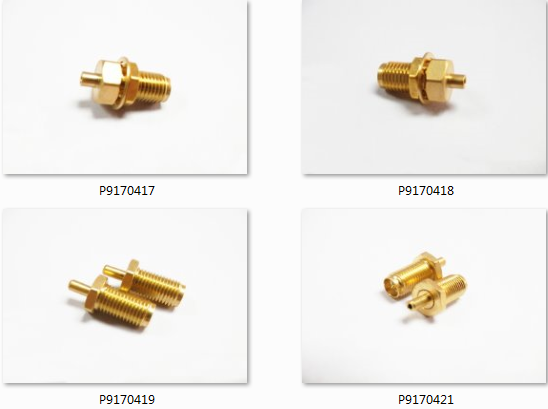

SMA RF Connector Female / Waterproof Bulkhead Connector For RG316 RG174 LMR100 Cable
Product Description :
SMA connector series is small type thread connectors manufactured according to MIL-C-39012 , IEC169-15 and CECC22110.
Its characteristics are as follows :
Long life , excellent performance , high reliability . It is widely used in microwave equipments and digital telecommunication equipments .
SMA Connector, SMA RF connector
1) Male and female
2) Cable crimp straight/R/A/PCB mount type
3) 50OHM ,0-12.4GHz
4) RoHS/ISO9001
Specification :
| Temperature range | -55—+155℃(PE Cable -40—+85℃) |
| Vibration | 98m/S²(10-2000Hz)10g | |
| Impedance | 50Ω | | |
| Frequency range | DC-12.4GHz(Semi-Rigled Cable DC-18GHz) |
| Working voltage | 335V r.m.s at sea level | |
| Withstanding voltage | 1000V r.m.s at sea level | |
| Contact resistance | | | |
| Center contact | ≤3mΩ | | |
| Outer contact | ≤2.5mΩ | | |
| Insulation resistance | ≥5000MΩ | | |
| Center conductor retention force | ≥0.28N | | |
| Coupling nut retention force | ≥180N | | |
| Insertion loss | ≤0.15dB/6GHz | |
| Voltage Standing Wave Ratio | | | |
| Straight | ≤1.10+0.02f | | |
| | ≤1.07+0.018f | |
| Right angle | ≤1.20+0.03f | | |
| | ≤1.17+0.02f | | |
| Durability(mating) | ≥500(Cycles) |
